C Mesh cable tray

Product Description

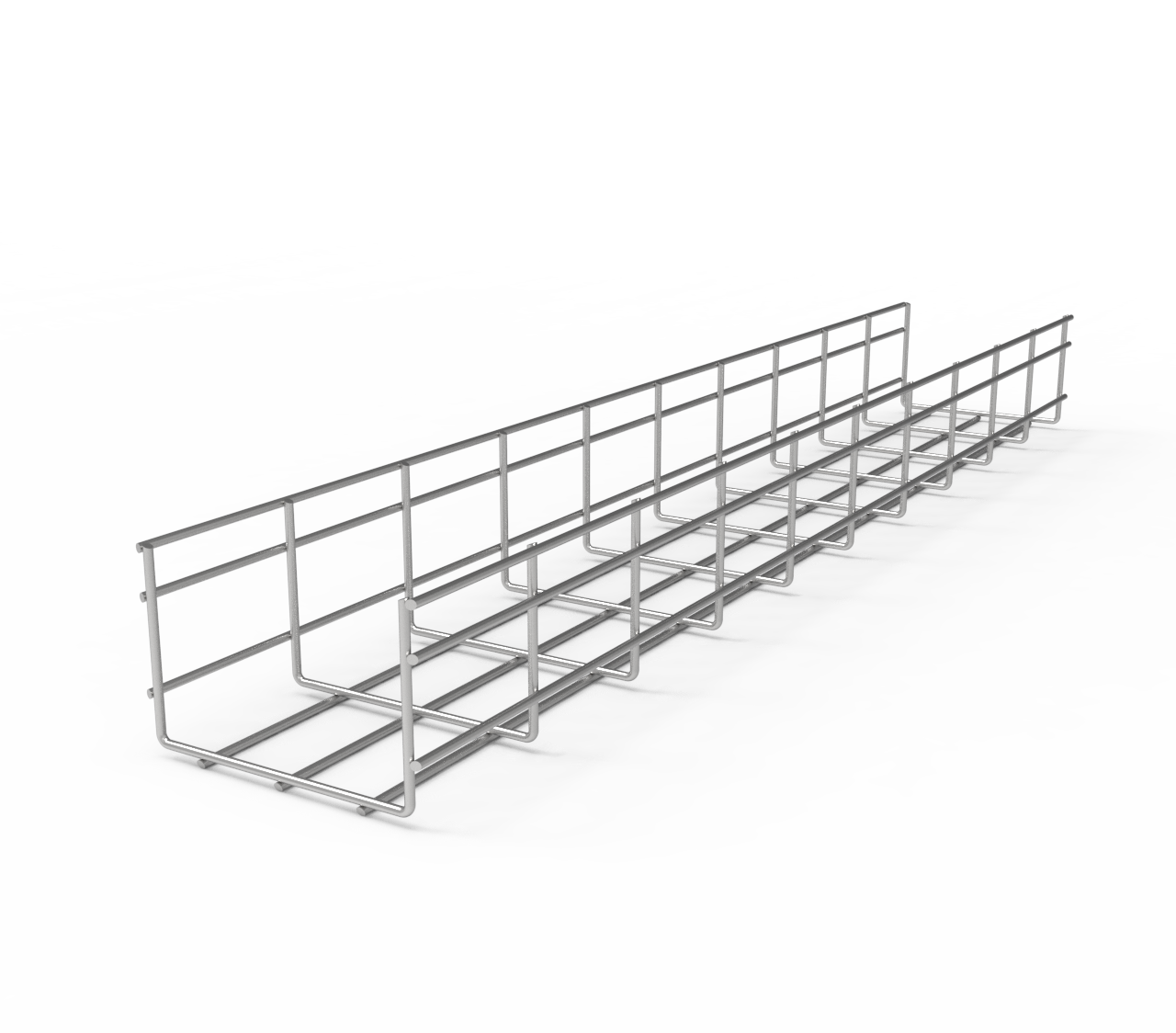

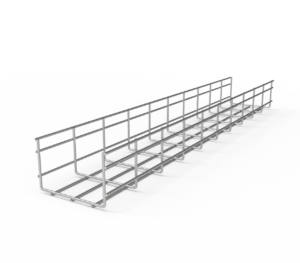

Product description C Type wire mesh cable tray made of spot-welded steel wire of side height 50 mm. Magnetic shield insulation 15 dB.

Technical Data

CO2 footprint (Product Carbon Footprint)		Technical Specifications
CO2 Footprint (GWP) Cradle-to-Gate	2,7968 kg CO2e / 1 Meter	Material	Steel
Colour	zinc	Profile shape	C-shaped
Connector version	Without connectors	Rustproof steel, pickled	no
Dimension	50x50x3000	Support spacing 1.0 m	0,95 kN/m
Dimension A	26 mm	Support spacing 1.5 m	0,6 kN/m
Dimension B	67 mm	Support spacing 2.0 m	0,35 kN/m
Dimension H	67 mm	Surface	Hot-dip galvanised
Dimension l1	30 mm	Type of connector, cable support system	Screwed
Height	50 mm	Usable cross-section	1300 mm²
Height	1,97 in	Usable cross-section	13 cm²
Integrated partition	Without	Wide-span version	no
Length	3000 mm	Width	50 mm
Load test type according to IEC 61537	Type II	Width	1,97 in
Maintain electrical functions	no	Wire diameter	4,5 mm

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
› CGR 50 50 FT	3000 mm	50 mm	50 mm	4.5 mm	13 cm²	no	6017428	3 m	3 m
› CGR 50 100 FT	3000 mm	100 mm	50 mm	4.5 mm	34 cm²	no	6017436	3 m	3 m
› CGR 50 200 FT	3000 mm	200 mm	50 mm	4.5 mm	75 cm²	no	6017444	3 m	3 m
› CGR 50 300 FT	3000 mm	300 mm	50 mm	4.5 mm	116 cm²	no	6017452	3 m	3 m
› CGR 50 400 FT	3000 mm	400 mm	50 mm	4.5 mm	157 cm²	no	6017460	3 m	3 m

Download

ZJGP26031203420技术文件（-网格桥架）.pdf

Download the official product specification document for full technical details, dimensions, and certifications.

Download File

C Wire mesh cable tray is a welded wire mesh cable management system offering zero hardware connection of straight lengths, allows for continuous airflow to prevent heat, dust, and contaminant buildup. Easy to fabricate and install on-site, wire mesh tray is the ideal for datacenters, commercial buildings, hospitals, schools, and industrial applications
